LdP Line, user manual
Relative study, output window (table)

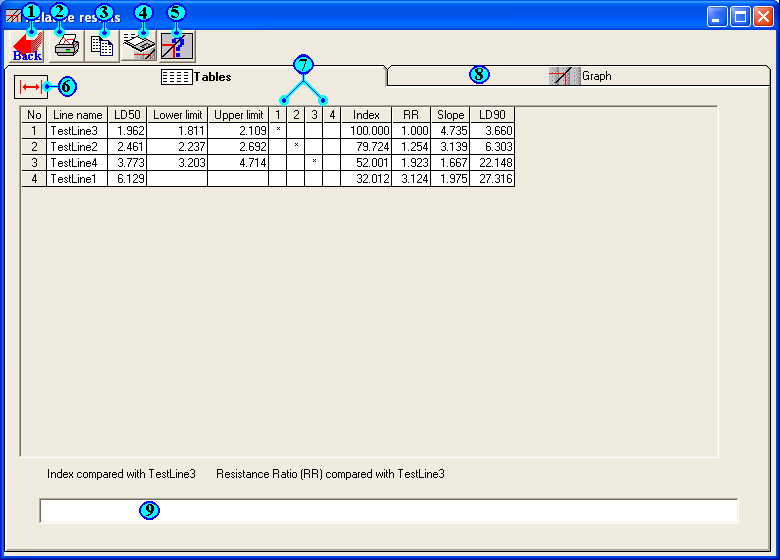

Description of
relative study output (tables) window contents.
1 | Back button: | Back to relative study window. |
2 | Print button: | Display print dialog box. |
3 | Copy button: | This button allow you to copy tables when tables are exhibited and copy graphic when graphic is exhibited. |
4 | Save results: | Save current results into files. Tables will be saved into Excel file and graph will be saved as bmp file. |
5 | Help button: |
Display related help. |
6 | Auto resize column width: | Auto resize column width according to text width. If you have manually changed column width clicking on this arrow will automatically resize it again. |
7 | confidence limits and its overlapping: | These columns present the
extension of confidence limits and its overlapping with
others (the extension is presented by * sign). Were each column presents the line which has the same number. In the above example, no overlapping was observed. |
8 | Graphic: | Display graphic sheet. |
9 | Footer field: | Here you can write any comment to be included in print out sheet. |
